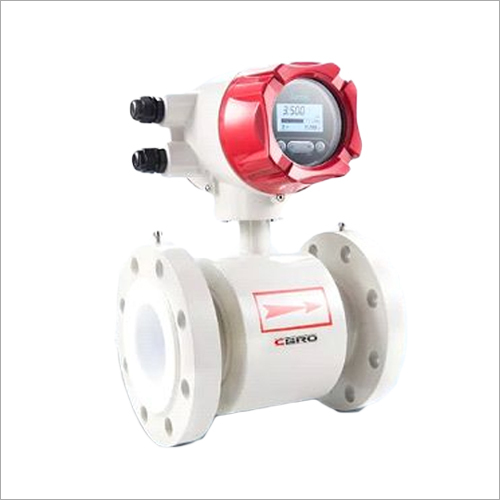

Battery Powered Electromagnetic Flow Meter

Get a Price/Quote

Product Details:

Usage Industrial
Color White
Product Type Flow Meter
Processing Type Standard
Condition New
Function Analysis
Power Mode Electric
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Battery Powered Electromagnetic Flow Meter Price And Quantity

Minimum Order Quantity 10 Piece

Battery Powered Electromagnetic Flow Meter Product Specifications

Usage Industrial
Color White
Warranty 2 Year
Function Analysis
Processing Type Standard
Power Mode Electric
Condition New
Product Type Flow Meter

Battery Powered Electromagnetic Flow Meter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 1 - 7 Week
Main Export Market(s) Asia Australia South America Middle East Central America Western Europe Eastern Europe North America Africa
Main Domestic Market All India

Product Description

Make : CBRO
Model : POWERMAG2500
Accuracy : +/-0.5%
Service Fluid : Water or Any Conductive Liquid
Power Supply : Battery Powered
Display : LCD for Flow Rate & Totaliser
Output : RS485

Specification

Working pressure (kg/cm2)	10, 16, 25, 40
Working temperature	Up to 55C
Electrode material	SS 316L Std.
Sensor lining	Std. Rubber
Display version	Integral/Remote
Measuring tube material	SS 304 Std.
Sensor housing material	Std. CS
End connection	Flange/Wafer/Tri-clamp/SMS
Flange standard	ANSI 150
Measuring range	0.2 to 12 m/sec. Bidirectional
Accuracy % of measured value	O.5%
Repeatability	0.2% of Span
Display	LCD
Display units	All standard engineering units in m3, litre, gallon, ft3, imperial gallon
Output	Output
Power supply	Battery powered (5 years battery life)
Protection class for sensor	Std. IP 65 Option IP 67/IP 68 for flow tube in remote type
Protection class for transmitter	IP 67
Cable length for remote	Std. 10 m
Installation	Inline flanged type

Salient Features:

Based on Faradays law of electromagnetic induction
Flow tube sizes 10 mm to 3000 mm and above
Coil assembly in hermetically sealed welded construction
Integral or remote transmitter
Field interchangeable electronics
High linearity due to characteristic magnetic field
Absolute zero stability and noise elimination due pulsed DC excitation
High long-term stability and reliability

Applications:

Chemical, petrochemical and process industries
Fertilizers industries
Pharmaceutical industries
Food and drug industries
Sugar, beverage industries
Paper and pulp industries
Water and waste water management
Dredging industries
Mining industries

Other Products in 'Electromagnetic Flow Meter' category

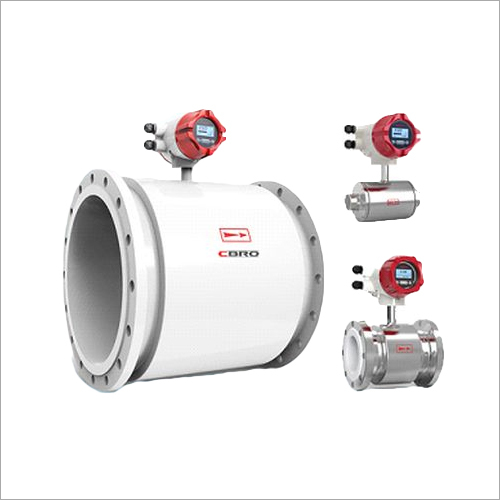

Electromagnetic Flow Meter Telemetry System Minimum Order Quantity : 10 Condition : New Product Type : Flow Meter Processing Type : Standard Application : Industrial Usage Function : Analysis Warranty : 2 Year Usage : Industrial Color : Multicolor Power Mode : Electric
