Electromagnetic Flow Meter

Get a Price/Quote

Product Details:

Product Type Flow Meter
Usage Industrial
Color Multicolor
Processing Type Standard
Condition New
Function Analysis
Application Industrial Usage
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Electromagnetic Flow Meter Price And Quantity

Minimum Order Quantity 10 Piece

Electromagnetic Flow Meter Product Specifications

Processing Type Standard
Color Multicolor
Application Industrial Usage
Function Analysis
Warranty 2 Year
Usage Industrial
Condition New
Product Type Flow Meter

Electromagnetic Flow Meter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 1 - 7 Week
Main Export Market(s) Asia Australia South America Middle East Central America Western Europe Eastern Europe North America Africa
Main Domestic Market All India

Product Description

The most demanding applications are compatible with the DIGIMAG250 Full Bore Electromagnetic Flow Meter. The flow meter is founded on the Faradays law of electromagnetic induction. The meter has a flanged design and comes with a selection of liner and electrode materials. It makes use of the gravimetric concept as its principal technique for measuring water flow.

Make : CBRO
Model : DIGIMAG250
Accuracy : +/--0.5%
Service Fluid : Water or Any Conductive Liquid
Power Supply : 24 VDC / 230 V AC
Display : LCD for Flow Rate & Totaliser
Output : Pulse / 4-20mA / RS485

Features:

Digital display for instantaneous flow reading.
Followed by CGWA, CGWB, and CSWA/B guidelines.
Remotely accessible because it provides an IOT platform for the water flow meters.
Tampering Alert on Dashboard.
Power failure Indication.
Backup of data as per request.
No Pressure drop in flow.

Two variants are available:

Electromagnetic Flowmeter with Inbuilt Telemetry System
Electromagnetic Flowmeter with External Telemetry System

Applications:

Steel & Aluminum
ETPs & STPs
Sugar & Distilleries
Paper & Pulp
Food & Drug
Petrochemical
Fertilizer and Chemical
Pharmaceutical

Specification

Working pressure (kg/cm2)	10, 16, 25, 40
Working temperature	Integral PTFE 120oC Remote PTFE 180oC Others 70oC
Electrode material	SS 316L Std.*
Sensor lining	Std. Rubber*
Display version	Integral/Remote
Measuring tube material	SS 304 Std.*
Sensor housing material	Std. CS*
End connection	Flange/Wafer/Tri-clamp/SMS
Flange standard	ANSI 150*
Measuring range	0.2 to 12 m/sec. Bidirectional
Accuracy % of measured value	O.5% (O.2% consult factory)
Repeatability	0.2% of Span
Display	2 line LCD
Display units	All standard engineering units in m3, litre, gallon, ft3, imperial gallon
Output	Std. 4 20 mA*
Power supply	12 60 V DC or 80 300 V AC/DC Solar powered
Protection class for sensor	Std. IP 65 Option IP 67/IP 68 for flow tube in remote type
Protection class for transmitter	IP 67
Cable length for remote	Std. 10 m*
Installation	Inline flanged type

Other Products in 'Electromagnetic Flow Meter' category

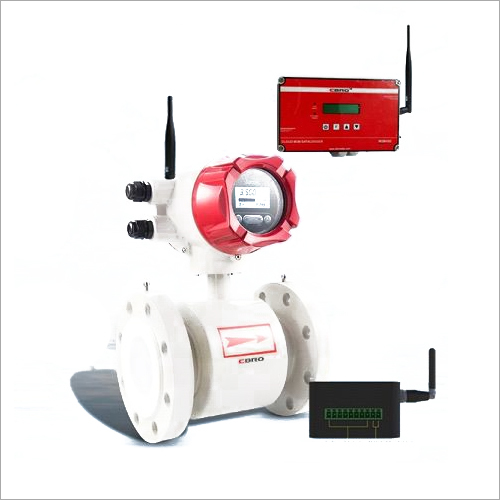

Electromagnetic Flow Meter Telemetry System Minimum Order Quantity : 10 Usage : Industrial Warranty : 2 Year Power Mode : Electric Processing Type : Standard Color : Multicolor Condition : New Product Type : Flow Meter Function : Analysis Application : Industrial Usage

Send Inquiry

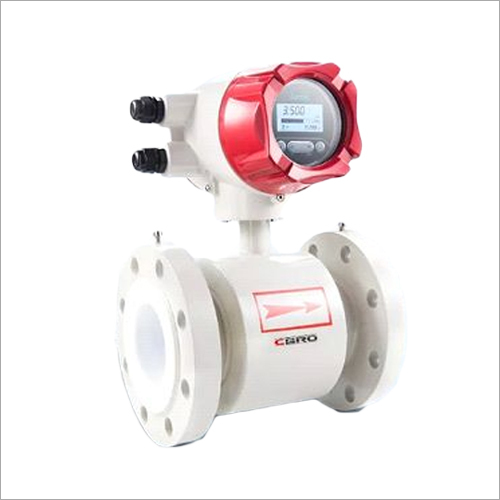

Battery Powered Electromagnetic Flow Meter Minimum Order Quantity : 10 Usage : Industrial Warranty : 2 Year Power Mode : Electric Processing Type : Standard Color : White Condition : New Product Type : Flow Meter Function : Analysis
