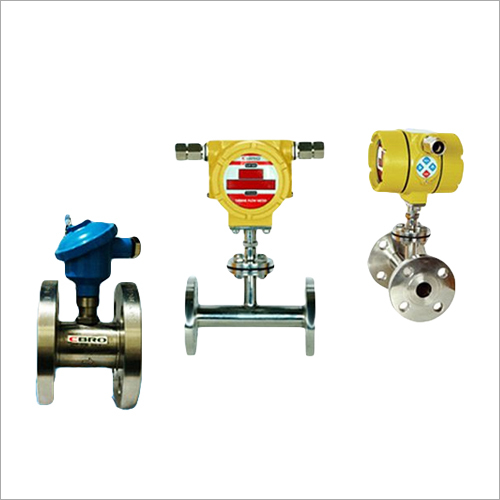

Turbine Flow Meter

Get a Price/Quote

Product Details:

Color Multicolor
Product Type Flow Meter
Usage Industrial
Material Metal
Power Supply 24 VDC / 230 V AC
Accuracy +/--0.5% FOR Liquid , +/- 1% for Gas %
Display Type LCD for Flow Rate & Totaliser
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Turbine Flow Meter Price And Quantity

Minimum Order Quantity 10 Piece

Turbine Flow Meter Product Specifications

Usage Industrial
Accuracy +/--0.5% FOR Liquid , +/- 1% for Gas %
Product Type Flow Meter
Material Metal
Color Multicolor
Display Type LCD for Flow Rate & Totaliser
Power Supply 24 VDC / 230 V AC

Turbine Flow Meter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 1 - 7 Days
Main Export Market(s) Asia Australia Middle East Central America South America Western Europe Eastern Europe North America Africa
Main Domestic Market All India

Product Description

The Turbine Flow Meter consists of a freely hanging bladed rotor that is axially positioned in the flow stream and is pushed against by the flowing fluid. The volume of the fluid passing through the meter is accurately represented by the turbine since its rotational speed is proportionate to the velocity of the fluid. Electrical pulses are produced in the pick off connected to the flow meter housing by the turbine rotors rotation.

Applications:

Water
Diesel
Petrol
Vegetable Oil
Hydraulic Oil
Chemical (S.S. With Teflon coating)
Milk plant.
Air
Gases

Make : CBRO
Model : TFM250
Accuracy : +/--0.5% FOR Liquid , +/- 1% for Gas
Service Fluid : Liquid & Gas
Liquid Viscosity : 25cp
Power Supply : 24 VDC / 230 V AC
Display : LCD for Flow Rate & Totaliser
Output : Pulse / 4-20mA / RS485

Specification

Transmitter Electronics	Integral / Remote
Accuracy	+1- 1% F.S. (0.5% Optional)
Linearity	+/-0.5%
Repeatability	+/-0.2%
Turn down ratio	10 : 1 to 100 : 1
Density / Sp. Gravity	Up to 2.95
Viscousity	Up to 100 cp
Process Temperature	0-80 Deg C (Special design for high temerature available)
Process Pressure	0-20 Kg/cm2 (Special design for high pressure available)
Material of construction	Bearings Tungsten Carbide Sleeve / Rotor SS 410
Power Supply	24 V DC, External / Battery Powered / Solar Powered
Power Consumption	< 1 VA
Response Time	< 100 m Sec
Temperature Coefficient	+/-0.01 % per 0C
Transmitter Enclosure	Flame-proof, IP-65, IIA, IIB CMRI certified
Mounting	Flush of Panel
Communication	RS485 Modbus / GPRS / Wifi
Series	TFM250
