Electromagnetic Btu Meter

Get a Price/Quote

Product Details:

Product Type Btu Meter
Color Blue
Usage Measuring Tool
Material Metal
Power Supply Electricity
Display Type Analog And Digital
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Electromagnetic Btu Meter Price And Quantity

Minimum Order Quantity 10 Piece

Electromagnetic Btu Meter Product Specifications

Power Supply Electricity
Display Type Analog And Digital
Product Type Btu Meter
Usage Measuring Tool
Material Metal
Color Blue

Electromagnetic Btu Meter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 1 - 7 Week
Main Export Market(s) Western Europe Asia Australia Eastern Europe Middle East South America Central America North America Africa
Main Domestic Market All India

Product Description

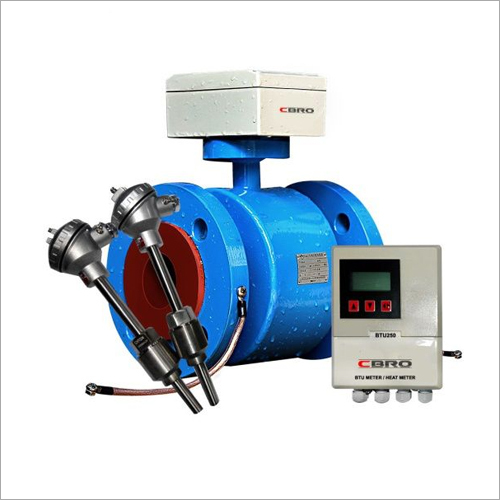

For precise measurement of the heat or cold energy in a water heating/cooling circuit, this Electromagnetic Btu Meter is used. It is made up of the main unit, two temperature sensors, and an electromagnetic flow sensor. The powerful console that combines highly accurate flow measurement, temperature measurement, and BTU calculation makes up the primary unit. This information is used to compute the thermal power and energy needed to maintain the temperature at the specified level.

Applications :

Chilled Water HVAC
Hot Water HVAC
Condensate And Heating Water Circuits
Boiler Feed Water
Thermal Storage, Geothermal System, Solar Hot-water System
District Energy Management And Billing
Commercial Building Tenant Billing
Leed / Green Building Verification,Green Credit Application
Energy Consulting
Power Plant Efficiency Monitoring
Facility Management In Shopping Malls, Campus, Industial Parks, Hospitals, Commercial Buildings,
Government Buildings, Airports And More

Specification

Lining material	Hard Rubber / PTFE
Electrode material	SS316 / SS316L / Hasteloy C
End Connection	Flange ANSI 150 RF / Tri-clover
Accuracy	0.25% of F. S. w. r. t inputs
Operating Pressure	16 / 20 / 30 / 40 Bar High Pressure on Request
Operating Temperature	-25 50 Deg C
Power Supply	(A) 110/230 AC/24 V DC, 50/60 Hz (B) 4 Watts Maximum / Solar Power
Output	Isolated 4-20mA proportional to power output
Specifications :-	BTU CALCULATOR
Input	a) 4-20mA from Flow meter, b) RTD, PT100 / PT1000 (Inlet Temperature ), c) RTD, PT100 / PT1000 (Outlet Temperature )
Humidity	Below 90%, Non Condensing
Display	16 x 2 LCD, 9 or 10 Digits for Total Energy & 5 Digits for instantaneous Totaliser Power
Energy / Heat Unit	Tr , BTU/Hr , Kwh , Kcal , Kcal/Hr
Language	English, Spanish, Russian, etc.; minor languages can be customized.
Totaliser Back-Up	Backup for Total Energy provide on power failure for 21/2 year
Log View	Possible by scrolling of keys(Optional)
Communication	RS232 / 485 Modbus Protocol
Wireless Communication	GPRS / WIFI / BACnet IP Protocol for BMS (Building Management System )
