Inline Ultrasonic Btu Meter Blue

Get a Price/Quote

Product Details:

Size 50 MM - 350 MM
Color Multicolor
Usage Measuring Tool
Product Type Btu Meter
Material Plastic
Power Supply Electricity
Display Type Digital Only
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Inline Ultrasonic Btu Meter Blue Price And Quantity

Minimum Order Quantity 10 Piece

Inline Ultrasonic Btu Meter Blue Product Specifications

Power Supply Electricity
Material Plastic
Product Type Btu Meter
Color Multicolor
Usage Measuring Tool
Size 50 MM - 350 MM
Display Type Digital Only

Inline Ultrasonic Btu Meter Blue Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 1 - 7 Week
Main Export Market(s) Western Europe Australia North America Eastern Europe Central America Middle East South America Asia Africa
Main Domestic Market All India

Product Description

Specification

Mounting	wall mounting, panel, local
Transducer type	clamp-on, spool piece, or insertion
Display	LCD with backlight, 2 x 20 characters 1-line, non-backlit 7 digit LCD (ILD version) Displays energy
Product Code	BTU250 Series
Port	Mumbai
Payment Terms	T/T
Delivery Time	4-5 Days

Technical Specifications

Make	CBRO
Model	UBM250I-F
Size (mm)	50	65	80	100	125	150	200	250	300
Accuracy grade standard	GB/T32224-2015
Flow sensor
Maximum flow rate	30	50	80	120	200	250	500	800	1200
Optimal flow rate	15	25	40	60	100	125	250	400	600
Minimum flow rate	0.6	1	1.6	2.4	4	6	10	16	24
Max. working pressure	16 Bar (231 PSI)
Max. pressure drop	0.25 Bar (36.2 PSI)
Meter body material	Cast steel (stainless steel)
Temperature sensor
Sensing Element	Pt100 / Pt1000
Temperature measurement range	4 95 C (over 100 C needs to be customized)
Signal cable length	3m (6m and 10m optional)
Probe fixing	SS thermowell
Calculator
Differential temperature range	3 70 deg C
Temperature resolution	0.01 deg C
Working temperature	5 55 deg C
Protection class	IP68
LCD display	(8-bit, 10-digit) special symbol
Data protocol interface	infrared, M-BUS and Modbus (RS485 optional) / Bacnet / GPRS / Wifi
Built-in battery working life	3.6V high-energy lithium battery, theory lifetime more than 8 years / 24 V DC

Other Products in 'BTU Meters' category

Inline Ultrasonic Btu Meter Minimum Order Quantity : 10 Power Supply : Electricity Material : Plastic Product Type : Btu Meter Usage : Measuring Tool Color : White Display Type : Digital Only

Send Inquiry

Electromagnetic Btu Meter Minimum Order Quantity : 10 Power Supply : Electricity Material : Metal Product Type : Btu Meter Usage : Measuring Tool Color : Blue Display Type : Analog And Digital

Send Inquiry

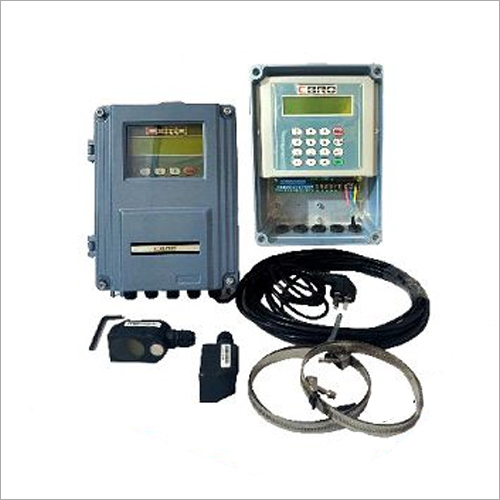

Clamp On Ultrasonic Btu Meter Minimum Order Quantity : 10 Power Supply : Electricity Material : Plastic Product Type : Btu Meter Usage : Measuring Tool Color : Multicolor Display Type : Digital Only
